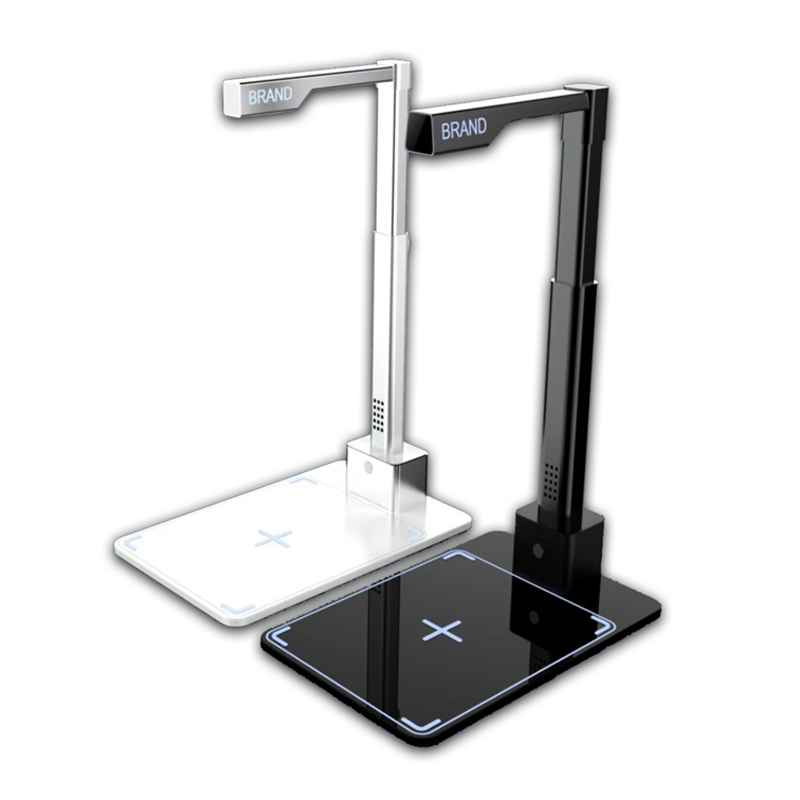

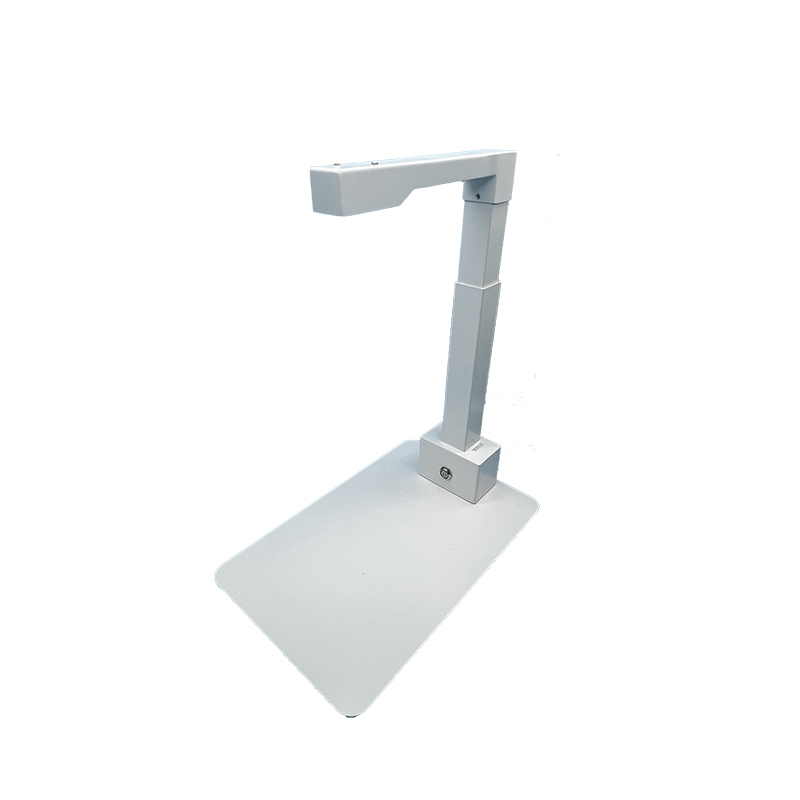

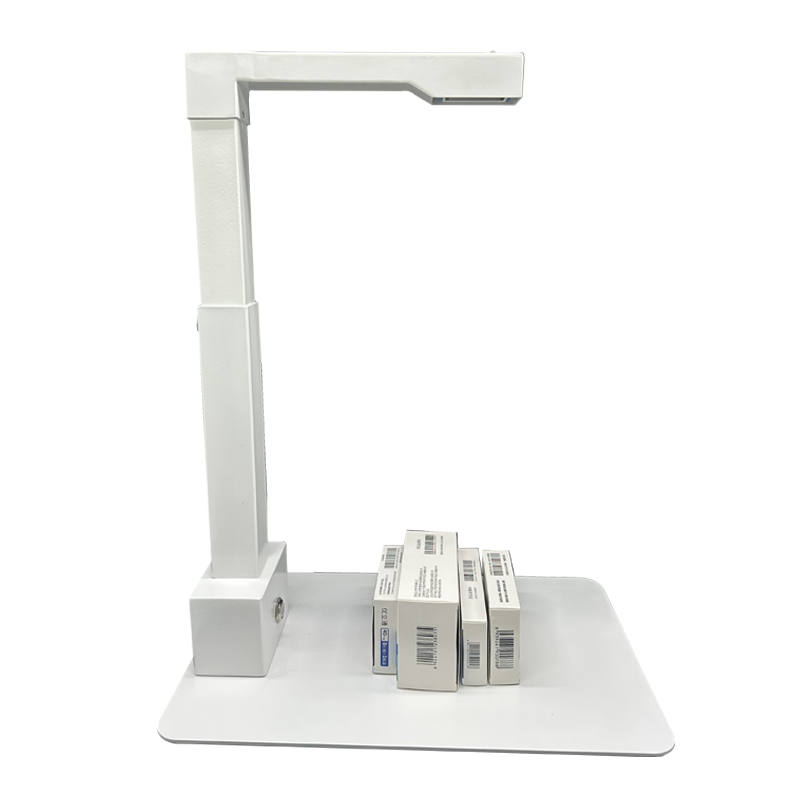

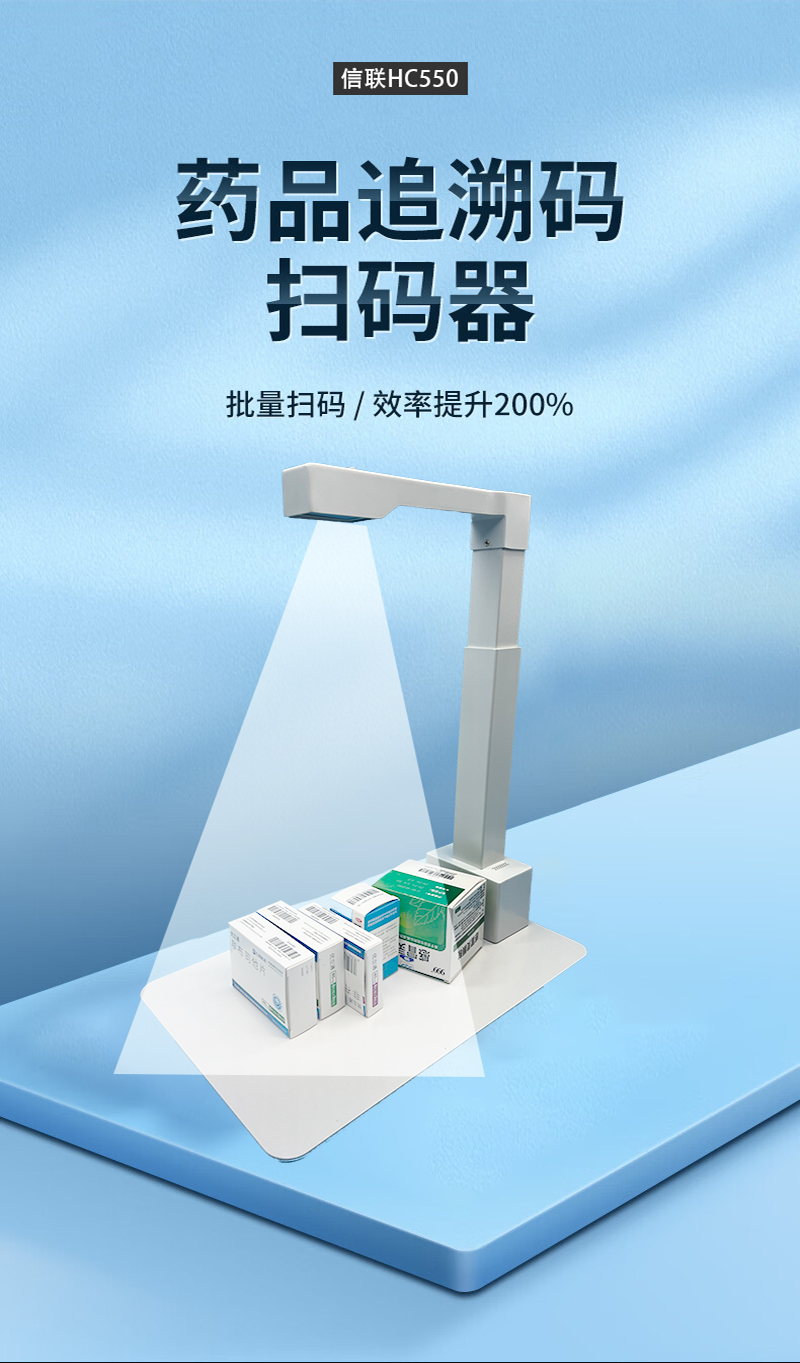

HC550
High-Speed Document Scanner

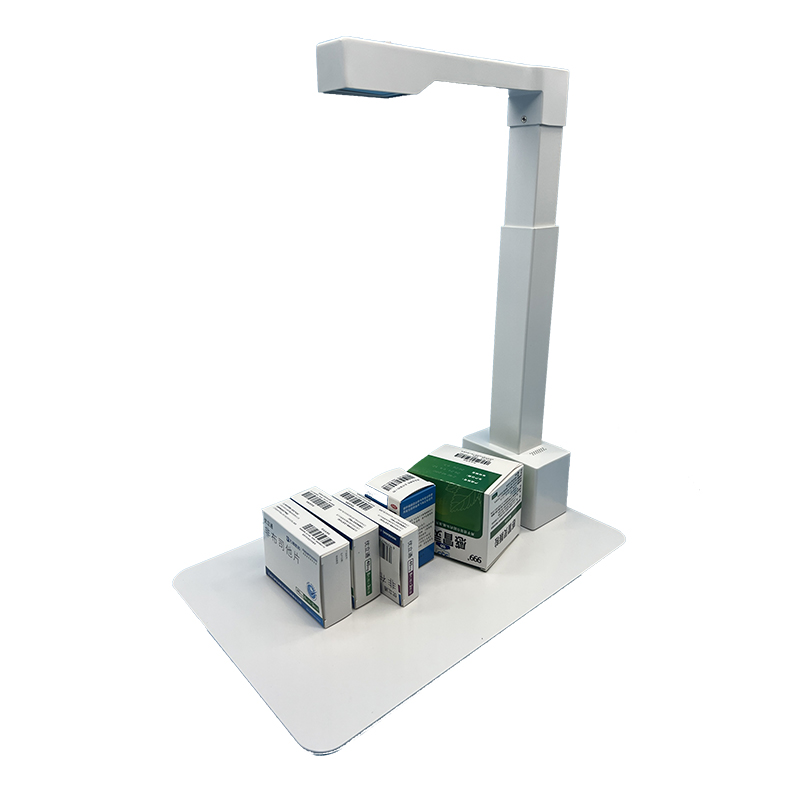

The HC550 drug traceability high-speed scanner is a two-dimensional scanner specifically designed for batch collection of drug traceability codes. It is mainly applied in scenarios of medical circulation management such as hospital pharmacy management, drug pick-up Windows, and pharmacy settlements. With an ultra-wide field of view, it can scan multiple drugs at once, quickly complete information entry, and significantly improve work efficiency.

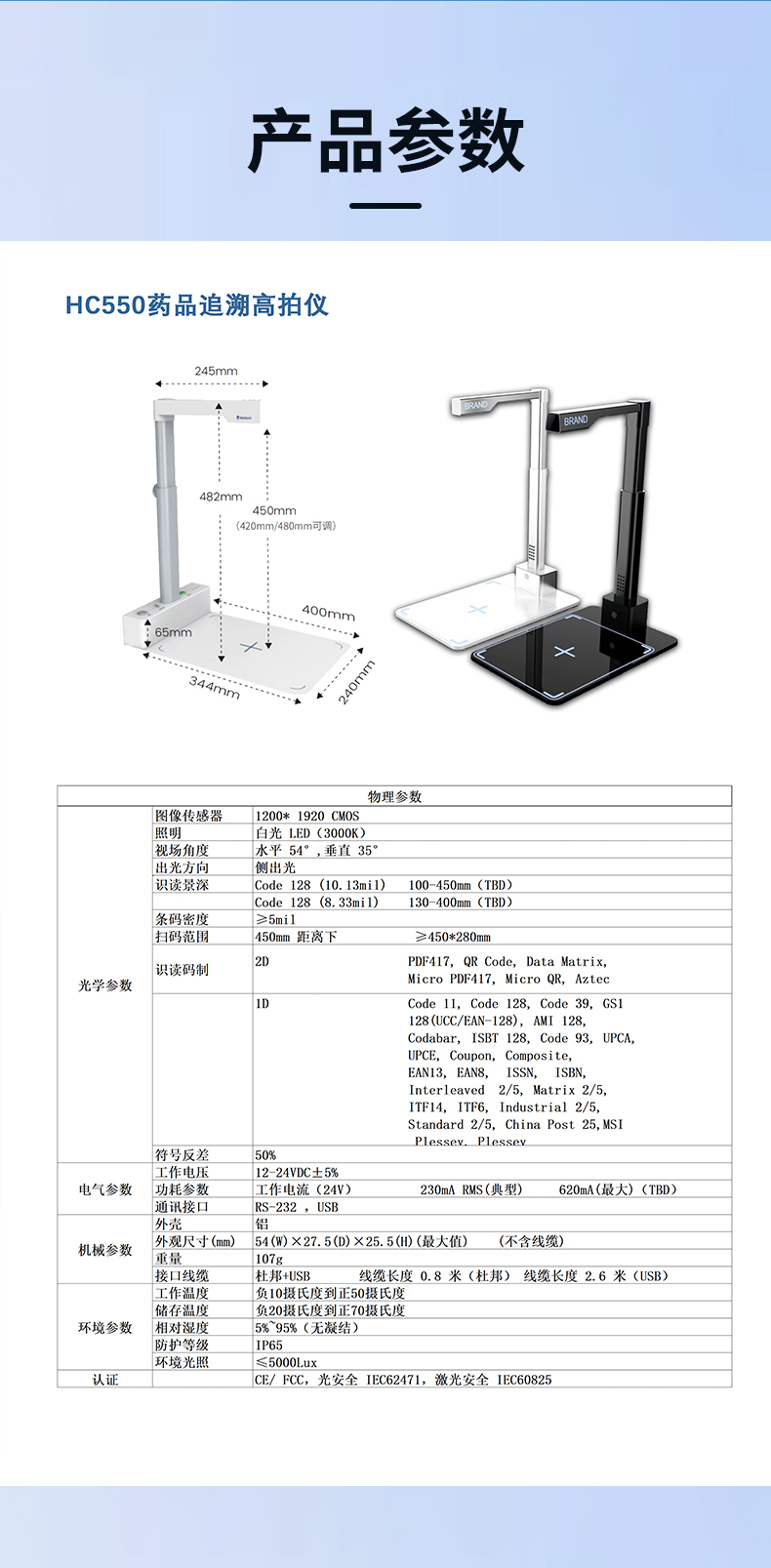

Specifications
-
Image sensor
1200*1920 CMOS
-
Lighting
White LED (3000K)
-
Field of view Angle
Horizontal 54°, vertical 35°
-
Light output direction
Side light emission
-
Read the depth of field
Code 128 (10.13mil) 100-450mm（TBD） Code 128 (8.33mil) 130-400mm（TBD）
-
Barcode density
≥5mil
-
Scanning range
450mm 距离下 ≥450*280mm
-
Read the code system
2D/1D
Product accessories
