Specifications

•

  Secondary development

  Free API and various functional SDKS are provided

•

  Positioning function:

  Integrated with GPS, GLONASS and Beidou, with built-in antenna and support for AGPS

•

  Bluetooth

  Bluetooth 5.0 BLE

•

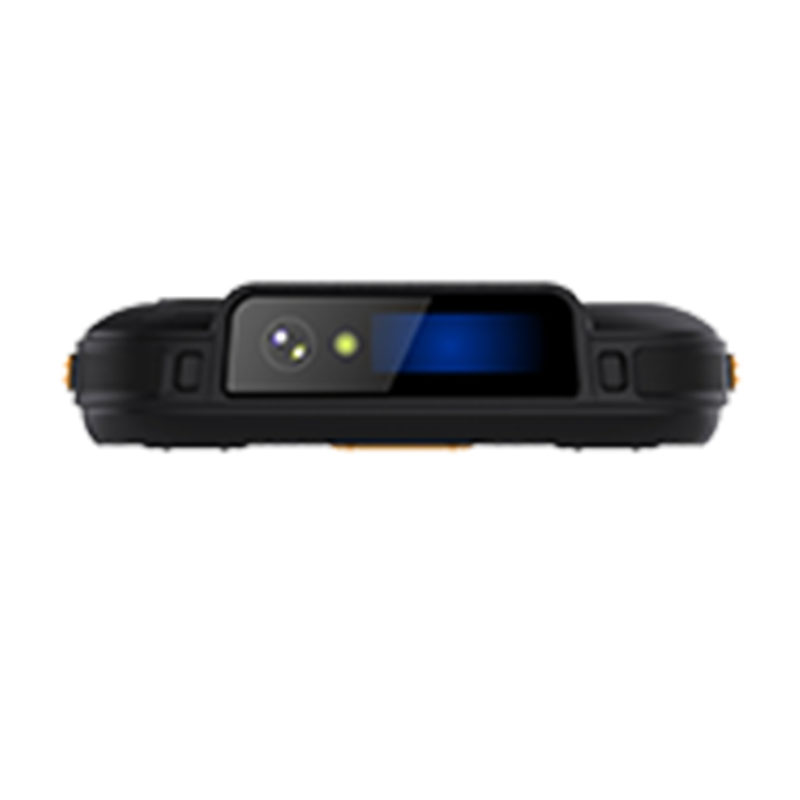

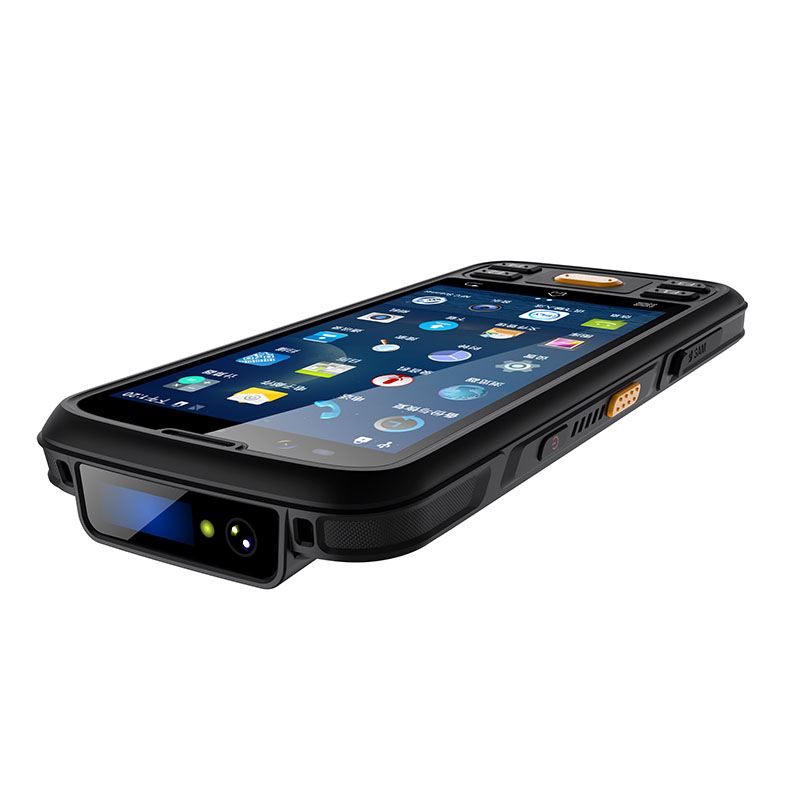

  Scanning code function

  Supports barcode and QR code scanning (optional: Zebra SE4710, Honeywell 6603, XDLcm60)

•

  Camera

  Rear 13-megapixel camera with auto focus and flash. An optional 5-megapixel front camera is available

•

  Memory

  RAM: 3G, ROM: 32G (supports optional 4G+64G), can insert 128G TF card

•

  Data communication

  Supports 4G full network compatibility, supports IEEE 802.11a /b/g/n, and supports dual-band WIFI (2.4G/5G)

•

  Keyboard

  There are five touch buttons on the front, including the volume ± button, the power button, and one custom button on each side

•

  Audio

  The microphone, receiver and 0.5W speaker support voice calls

•

  Communication interface

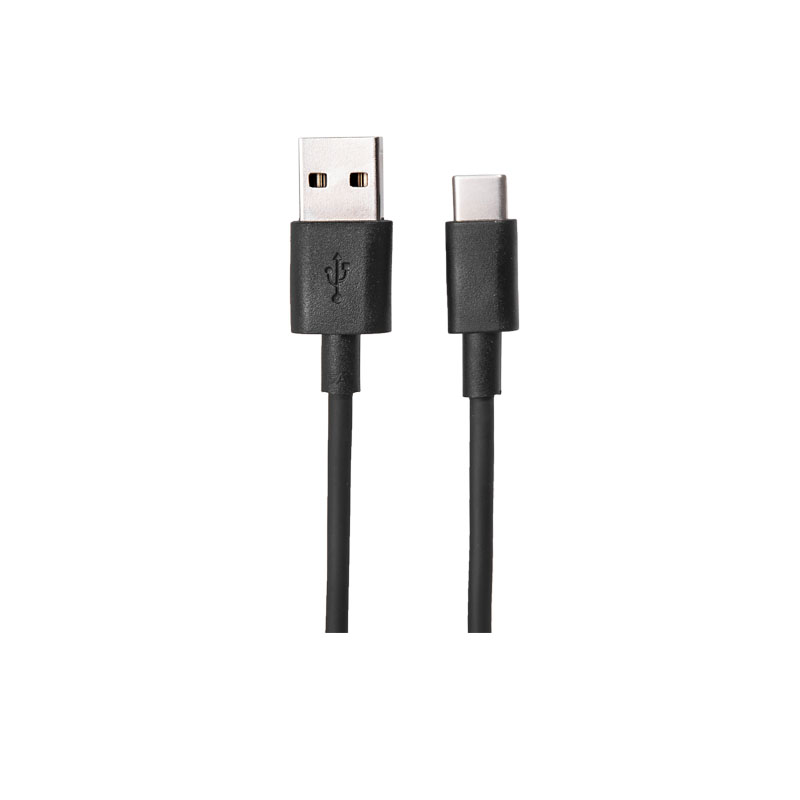

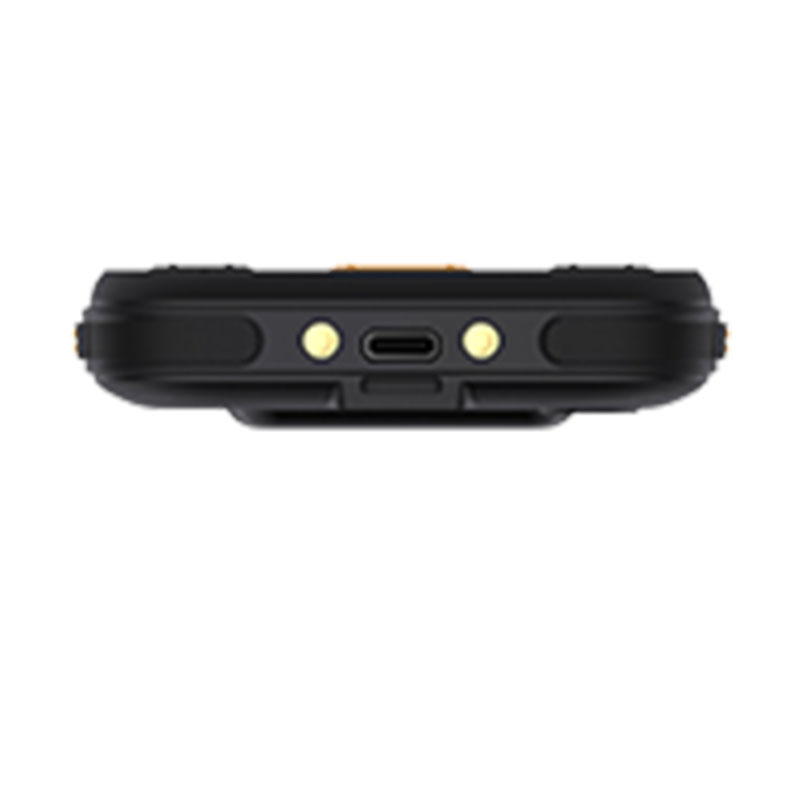

  USB Type-C，OTG

•

  Expansion slot

  1 SIM card slot, 1 MicroSD(TF) card slot, and optional PSAM function

•

  Battery capacity

  Rechargeable lithium polymer battery: 4300mAh

•

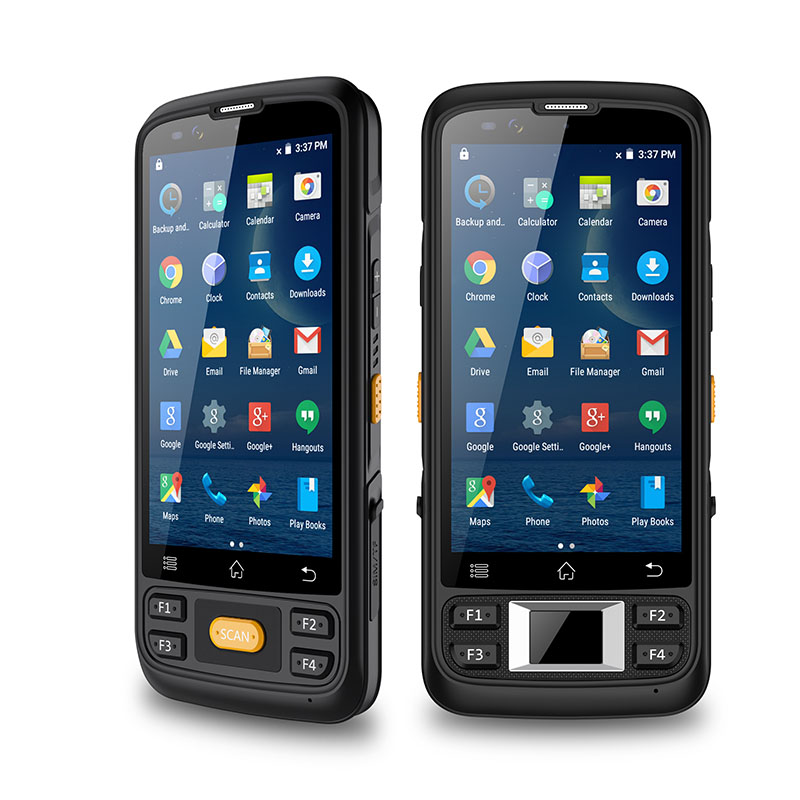

  Fingerprint function

  Capacitive USB press-type fingerprint Image resolution: 508dpi Authoritative certifications: Ministry of Public Security/FBI PIV mobile ID FAP10 of the United States and STQC certification of India

•

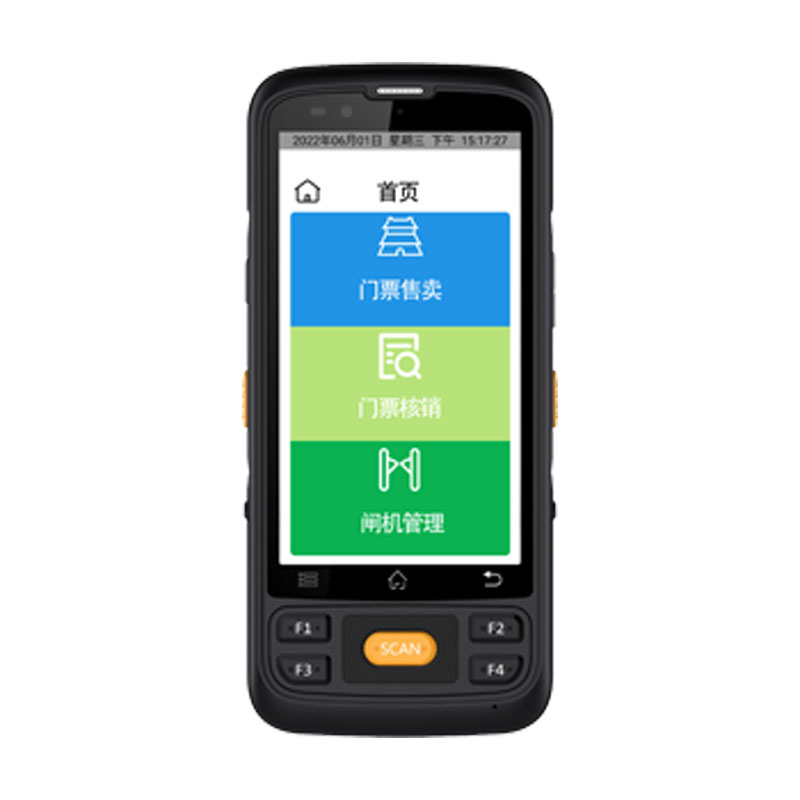

  Display screen

  5#, 1280*7200 resolution, 16.7M color backlight brightness adjustable (supports selection of 5.72# full-screen)

•

  Overall machine weight

  Whole machine: 280g, 350g with packaging

•

  Overall machine size

  178*78.8*17mm

• RFID

  Supports high frequency (13.56MHz) or low frequency (125K+134K)
