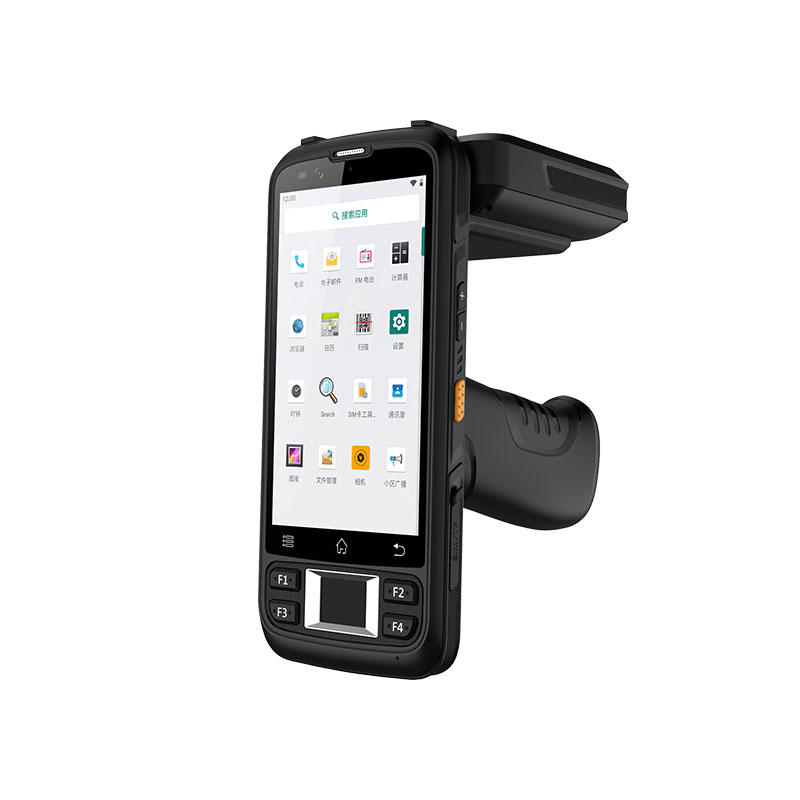

HC720S
25m+ Range UHF RFID Handheld Reader
This model integrates the powerful UHF RFID function. The self-developed ultra-high frequency module based on the Impinj E710 / R2000 chip is adopted. The data acquisition is accurate and fast, and the reading range is wide. The reading distance in the outdoor open environment exceeds 25 meters. It also supports the optional barcode function, adopts an octa-core processor, has diverse functions and complete configuration. Moreover, it is equipped with a large-capacity battery of up to 10,000mah, and can be optionally equipped with a 5-inch or 5.72-inch display screen. It supports fingerprint recognition in the public security database and has a group reading tag of 200pcs per second.
Specifications
-
CPU
Eight-core 2.0GHz
-
Memory (optional)
3/4GB+32/64GB is optional
-
Operating system
android12
-
Expand memory
The MicroSD (TF) card can be expanded up to 128GB
-
wifi
Supports IEEE802.11a/b/g/n protocols (2.4/5G dual-band)
-
Bluetooth
Bluetooth5.0
-
GNSS
GPS, GLONASS and Beidou; Support AGPS
-
Fingerprint (optional)
Capacitive USB press-type fingerprint module
-
Overall machine size
179*80*17.2mm
-
Screen
5.0/5.7-inch full screen (optional)
-
Battery capacity
9500mAh
-
Barcode collection (optional)
One-dimensional/two-dimensional
-
Camera
13MP rear camera + 5MP front camera (optional)
-
UHF
R2000,4dBi circularly polarized antenna
-
rfid
Low frequency (optional)/High frequency
-
SDK
Provide terminal software development toolkits
Product accessories
