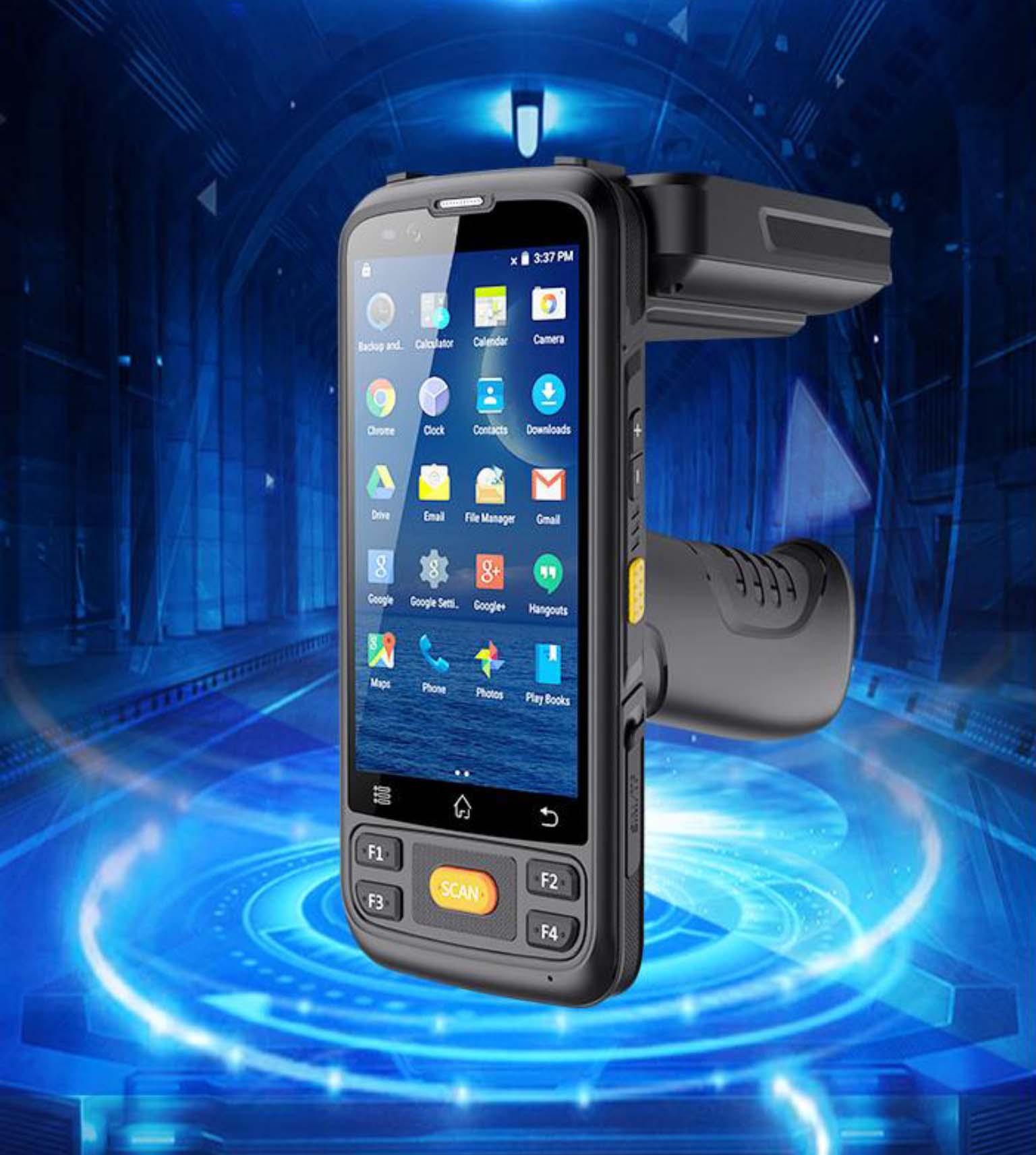

HC-S570
15m+ Handheld RFID Terminal

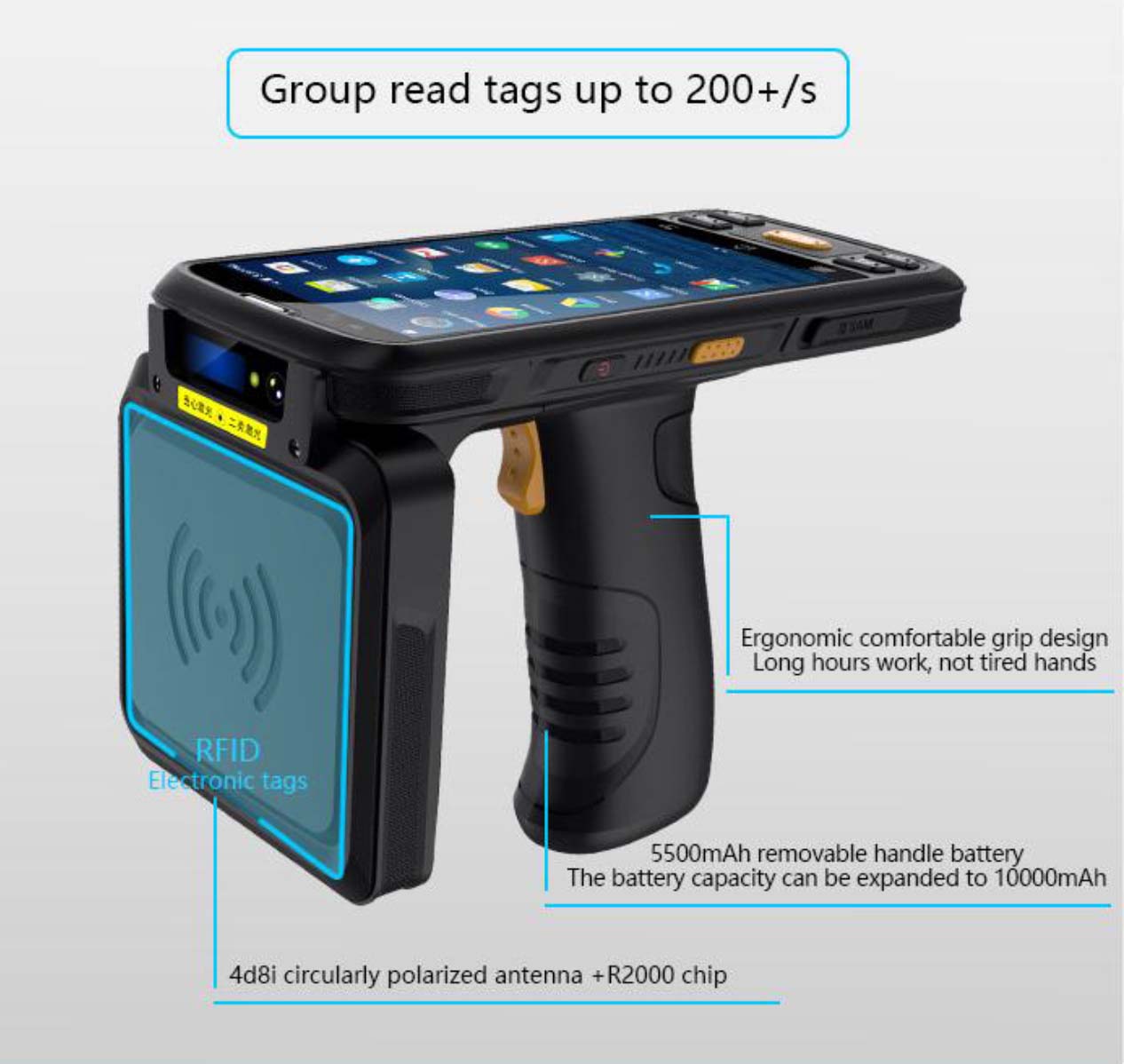

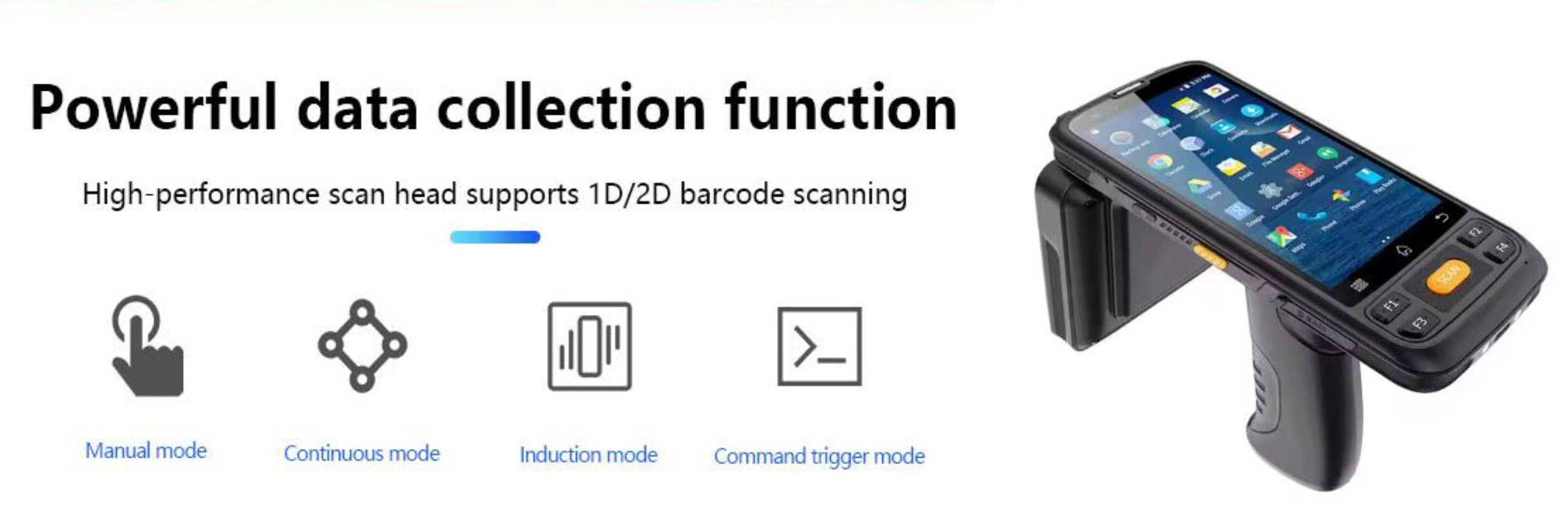

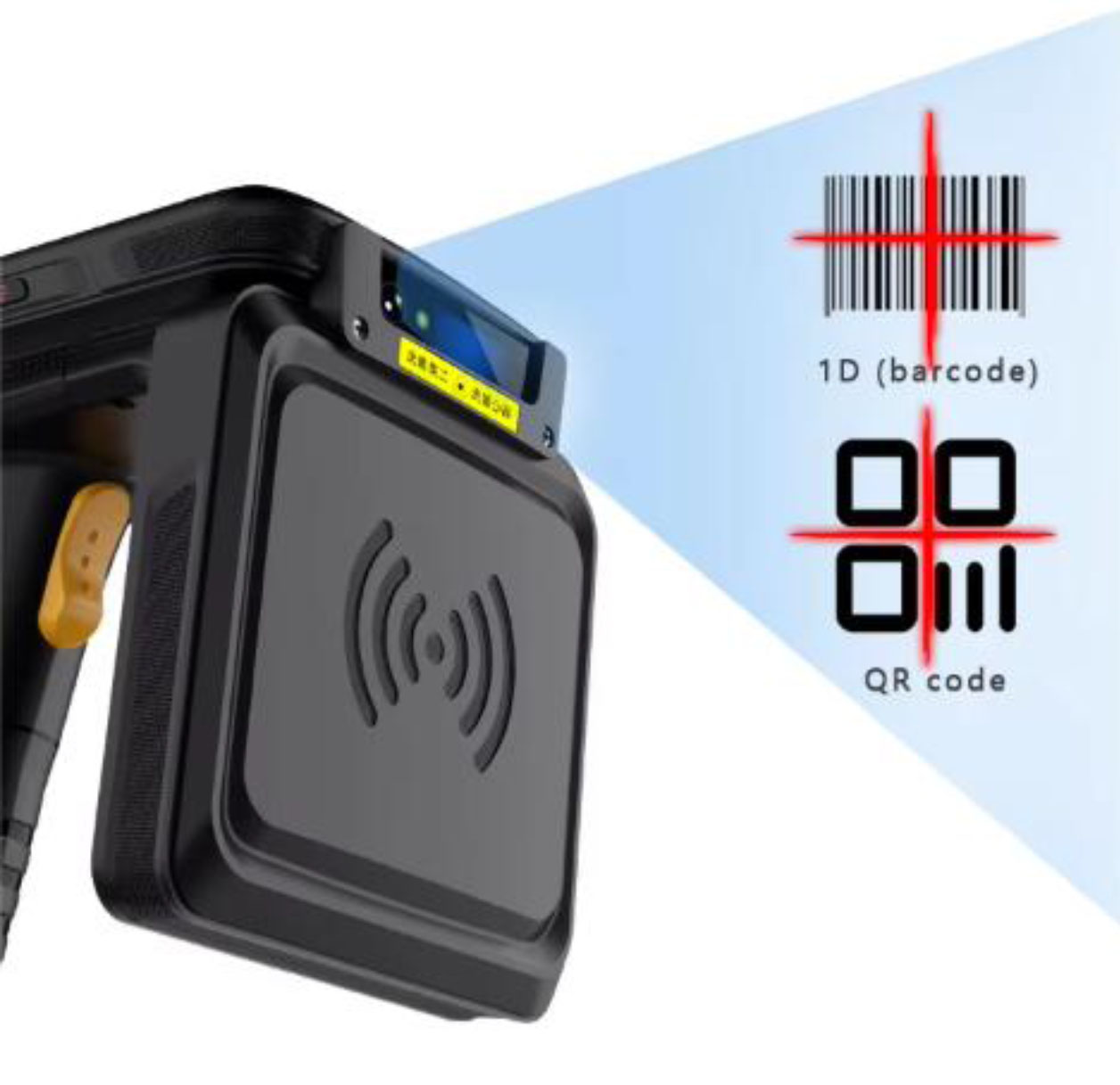

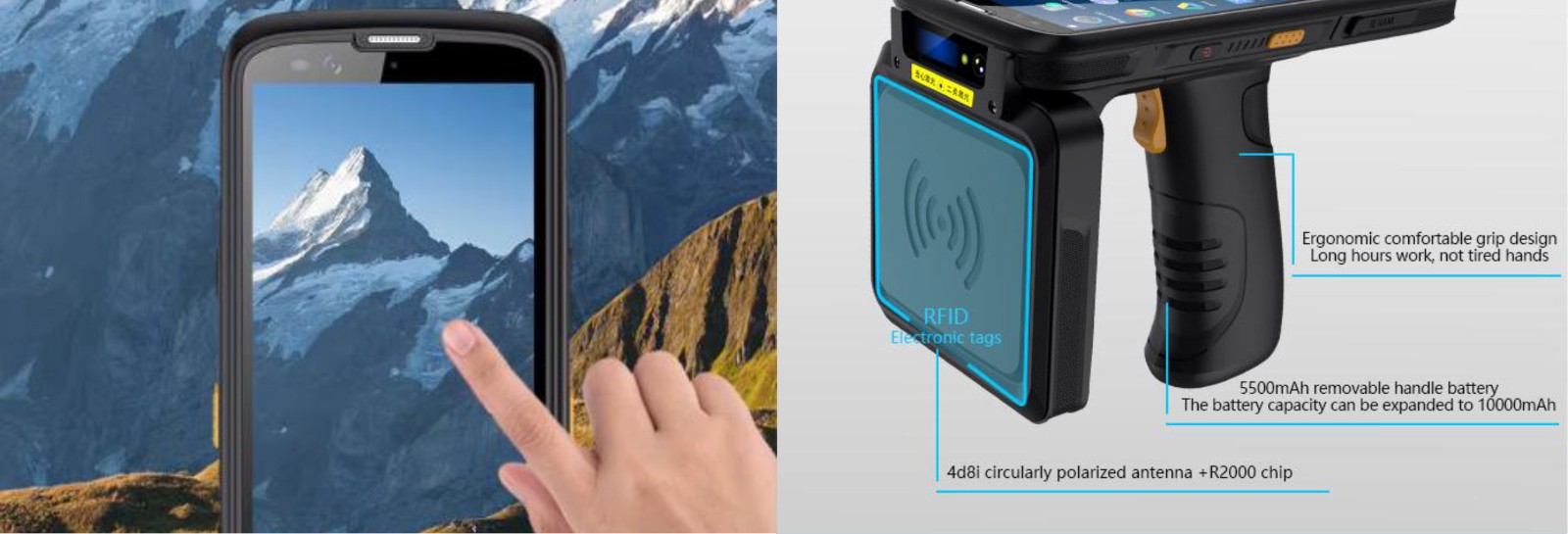

This product integrates powerful UHF RFID functions. It adopts the self-developed ultra-high frequency module based on Impinj E710/R2000 chip, which can collect data accurately and quickly, and has a wide reading range. The reading distance in an open outdoor environment exceeds 15 meters. It also supports barcode functions, adopts an eight-core processor, has diverse functions and complete configurations. In addition, it has a large-capacity battery of up to 10,000 mAh, 5 inch display, and an optional that supports public security database fingerprints. Group reading of tags 200pcs/second.

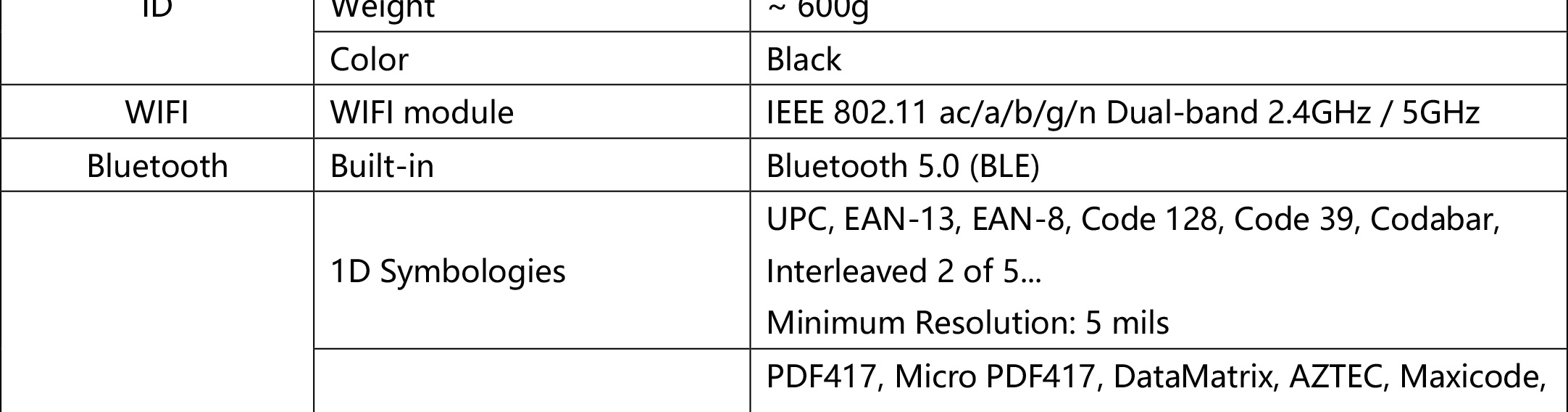

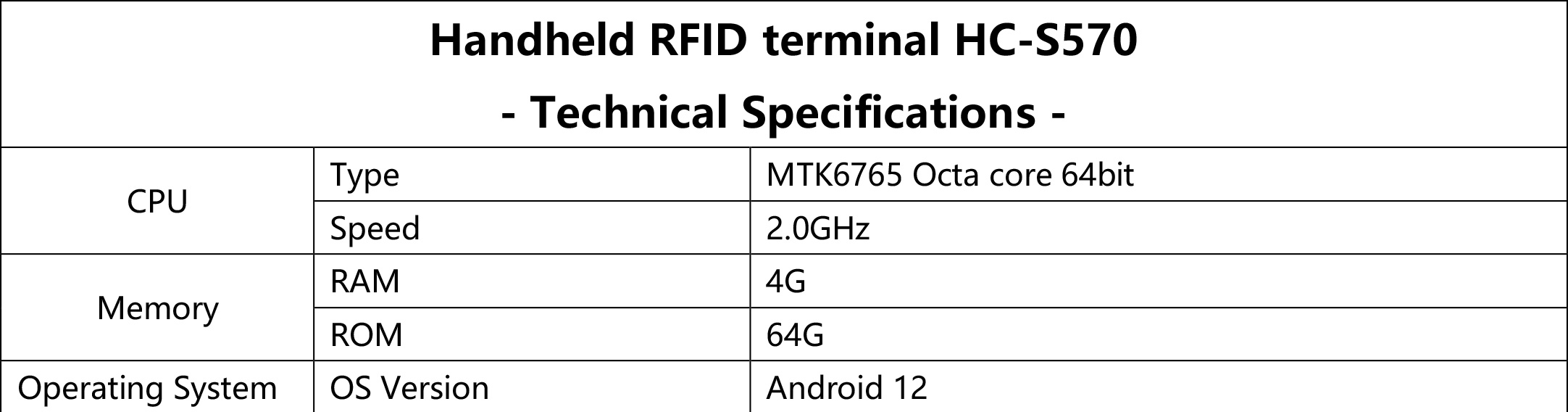

Specifications
-
CPU Type
MTK6765 Octa core 64bit
-
Memory
RAM: 4G+ROM: 64G
-
Operating System
Android 12
-

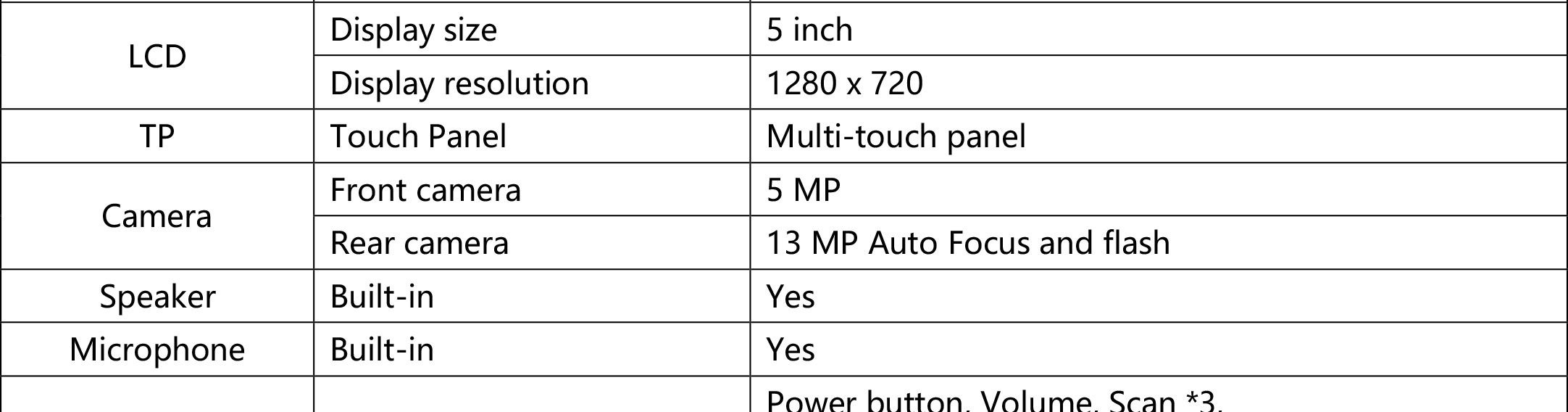

LCD Display
5 inch
-
Display resolution
1280 x 720
-
Physical buttons
Power button, Volume, Scan *3, F1/F2/F3/F4 customized keys
-
Battery
Removable polymer lithium ion battery
-
Capacity
10,000mAh, 3.7V, 4 hours to full charge
-
Dimensions
178x89x136mm
-
WIFI
IEEE 802.11 ac/a/b/g/n Dual-band 2.4GHz / 5GHz
-
Bluetooth
5.0 (BLE)
-
1D Symbologies
UPC, EAN-13, EAN-8, Code 128, Code 39, Codabar, Interleaved 2 of 5...
-

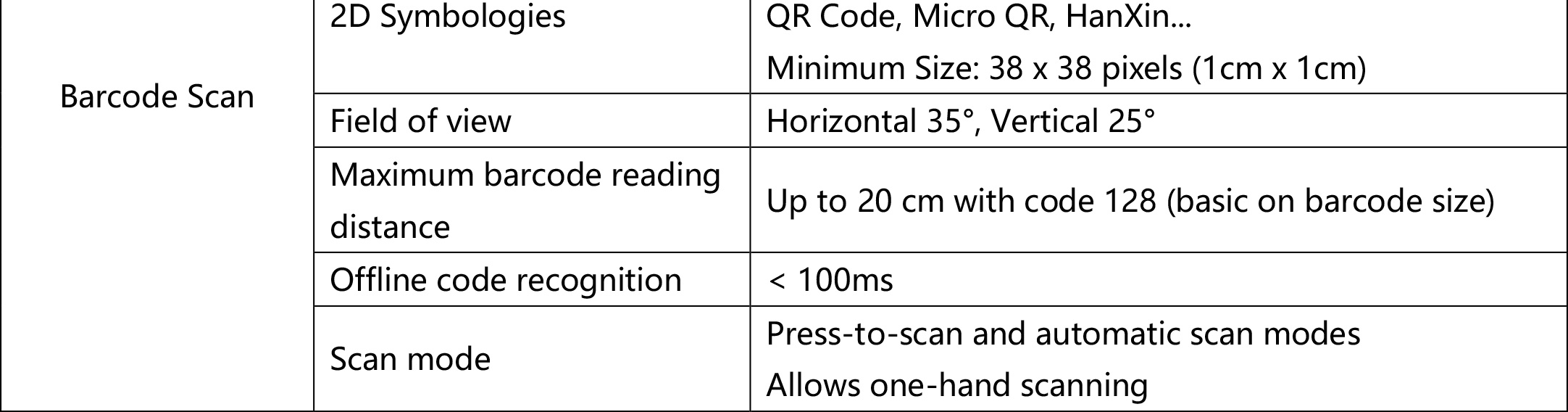

2D Symbologies
PDF417, Micro PDF417, DataMatrix, AZTEC, Maxicode, QR Code, Micro QR...
-

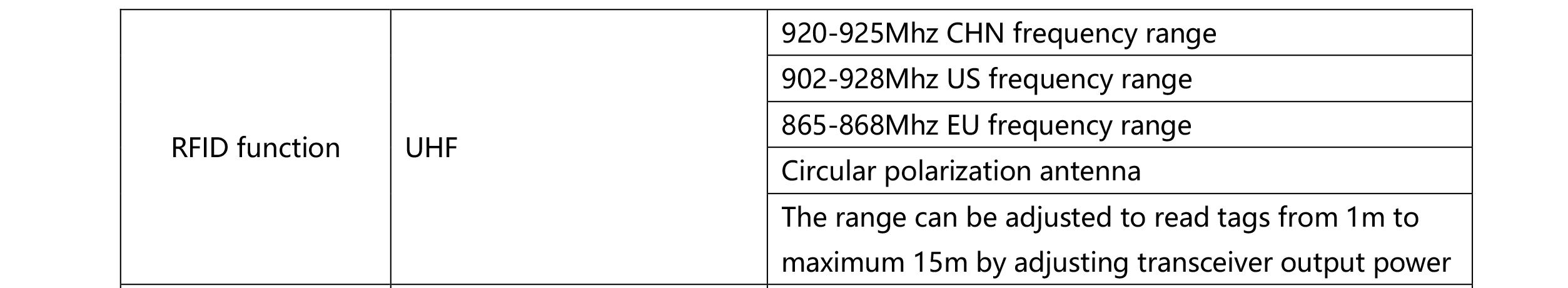

UHF
920-925Mhz CHN frequency range，902-928Mhz US frequency range，865-868Mhz EU frequency range
-
Operating Temp
-20 °C to 50 °C
-

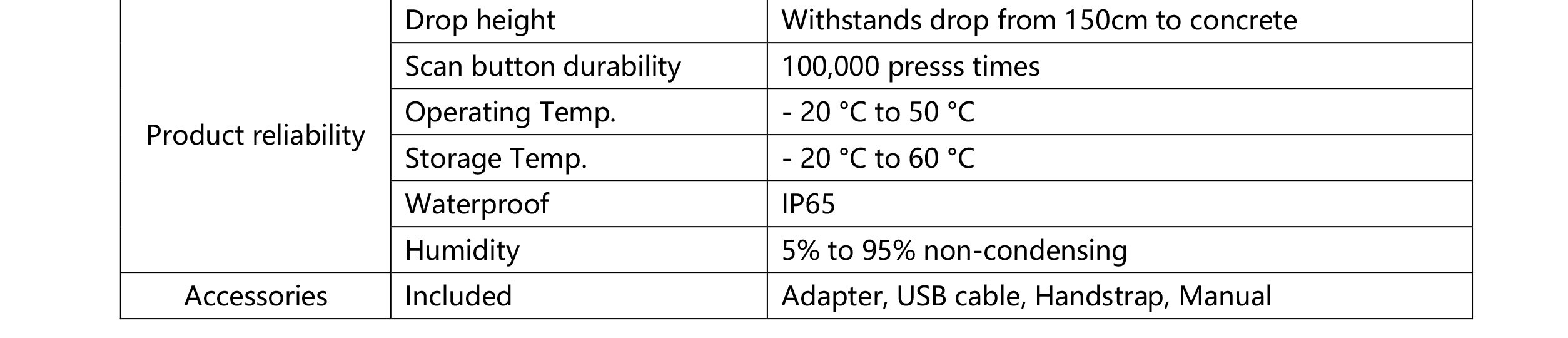

Drop height
Withstands drop from 150cm to concrete
Product accessories
