In the electronics manufacturing industry, SMT (Surface Mount Technology) production lines, serving as the high-precision, high-efficiency production core, impose extremely stringent requirements on equipment coordination, data flow, and quality control. Industrial PDA smart terminals, with their specialized design, have become crucial tools for the digital upgrade of SMT lines. This article delves into how industrial PDAs empower SMT production lines from a functional perspective, focusing on core scenarios such as data collection, real-time monitoring, and equipment coordination, showcasing their technological value in enhancing production efficiency and ensuring product quality.

I. Precision Data Collection: Building the Production Line Information Highway‌

SMT lines involve over a dozen processes such as PCB loading, solder paste printing, component placement, and reflow soldering, each requiring the recording of critical parameters. Industrial PDAs achieve multi-dimensional data collection by integrating high-precision scanning engines and industrial-grade sensors:

Barcode/QR Code Recognition:‌ Supports special code formats like DPM codes and micro-codes, enabling rapid reading of information on component packaging, PCB boards, stencils, etc., with an error rate below 0.001%.

Process Parameter Recording:‌ Connects to SPI inspectors, AOI equipment, etc., via RS232/USB interfaces, automatically collecting process data like solder paste thickness and oven temperature profiles, with timestamp accuracy reaching millisecond levels.

Human-Machine Interface (HMI):‌ Industrial touchscreens (5.5 inches or larger) support gloved operation. Combined with anti-static design, they ensure operators efficiently complete data entry and confirmation on high-speed lines.

II. Real-Time Monitoring & Alerts: Creating Transparent Production Dashboards‌

Traditional SMT lines rely on manual patrols, leading to delayed responses to abnormalities. Industrial PDAs enable real-time visualization of production status through IoT technology:

Equipment Network Integration:‌ Compatible with industrial protocols like SECS/GEM and Modbus, connecting placement machines, printers, etc., to acquire real-time equipment status, fault codes, and production capacity data.

Dynamic Dashboard Push:‌ Pushes KPIs like OEE (Overall Equipment Effectiveness) and First Pass Yield to the terminal screen. Supports custom threshold alarms. For example, if SPI detects excessive solder paste offset, the PDA immediately triggers audible/visual alerts and pushes repair guidance.

Energy Consumption Monitoring Module:‌ Built-in current sensors monitor standby power consumption of equipment. Combined with production cycle analysis, this provides data support for line energy-saving optimization.

III. Equipment Coordination Management: Reconstructing Production Scheduling Logic‌

SMT lines require strong equipment linkage. Industrial PDAs optimize workflows through edge computing capabilities:

Dynamic Task Allocation:‌ Automatically decomposes production tasks from MES work orders to specific machines. E.g., prioritizing a batch PCB placement task to an idle placement machine, reducing line changeover wait times.

Material Error-Proof Verification:‌ Scans reel barcodes during material changeovers, automatically comparing against BOM lists. If part number/batch errors occur, it immediately locks the equipment and prompts the correct material location.

AGV Scheduling Interface:‌ Includes reserved wireless communication interfaces to coordinate with AGVs, enabling automatic delivery and retrieval of materials like solder paste and stencils, reducing manual handling losses.

IV. Quality Traceability Loop: Building a Full-Process Mistake-Proofing System‌

Addressing SMT line quality traceability needs, industrial PDAs provide a three-tier control mechanism:

Forward Traceability:‌ Scanning a PCB serial number allows querying its operation records, equipment parameters, and inspection results at every process step, forming a complete production history.

Reverse Traceability:‌ When end products fail, it can trace back to specific component batches, suppliers, and production time periods, providing precise data for quality improvement.

SPC Analysis Support:‌ Collected process data can be exported to CSV/Excel formats, supporting integration with tools like Minitab for CPK value calculation and process capability analysis.

V. Environmental Adaptability Design: Meeting Stringent Line Challenges‌

SMT lines feature complex environments with high temperatures, static electricity, and dust. Industrial PDAs ensure stable operation through specialized design:

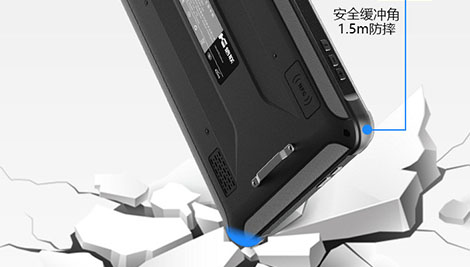

Protection Rating:‌ IP65 dustproof and waterproof housing withstands 1.5-meter drop impacts, adapting to line vibration.

Temperature Control System:‌ Built-in cooling ducts and thermal control chips allow continuous operation for 8 hours at 40°C without performance throttling.

ESD Protection:‌ Uses conductive silicone buttons and anti-static casing, meeting the ±8kV ESD contact discharge standard to prevent component damage.

VI. Extensibility & Compatibility: Enabling Flexible Line Upgrades‌

To adapt to the rapid evolution of the SMT industry, industrial PDAs offer an open technical architecture:

OS Compatibility:‌ Supports dual Android/Windows systems, capable of deploying customized MES clients or third-party industrial software.

Peripheral Expansion Interfaces:‌ Reserved POGO PIN interfaces support quick connection to modules like barcode scanner handles and RFID readers, meeting line modification needs.

Cloud-Edge Collaboration:‌ Interfaces with private/public clouds via MQTT protocol, enabling multi-line data aggregation and remote operation/maintenance.

Conclusion‌

The application of industrial PDA smart terminals in SMT lines essentially builds a closed-loop management system of "Data Collection - Real-Time Monitoring - Coordinated Scheduling - Quality Traceability." Their value lies not only in replacing paper records and reducing human errors but also in driving production decisions through precise data flow, enabling SMT lines to evolve towards an intelligent manufacturing model characterized by "zero defects, high flexibility, and full transparency." With the integration of 5G and Industrial Internet technologies, industrial PDAs will become key nodes connecting physical production lines to digital twins, continuously unleashing the digital potential of the electronics manufacturing industry.
